RT 1 Bridge Raritan River
PROJECT OWNER
New Jersey Department of Transportation
LOCATION
New Jersey
CLIENT(s)
Subconsultant to HNTB
SERVICES PROVIDED
Bridge Engineering
Bridge Inspection of the Rt 1 NB over Raritan River
PROJECT DESCRIPTION

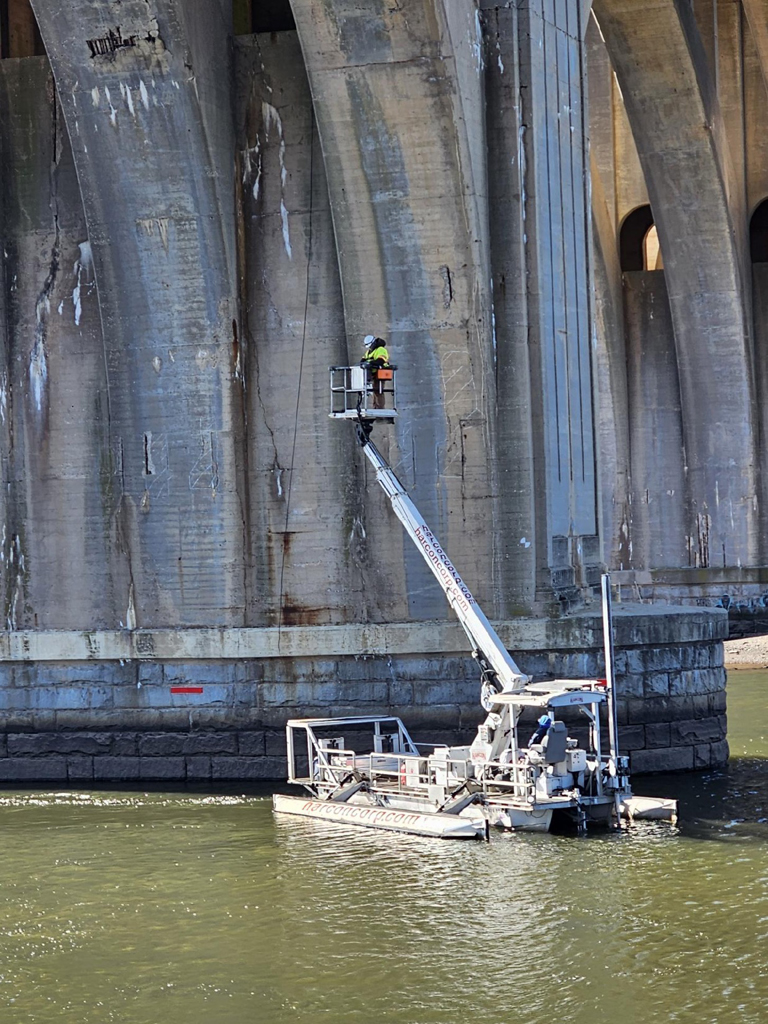

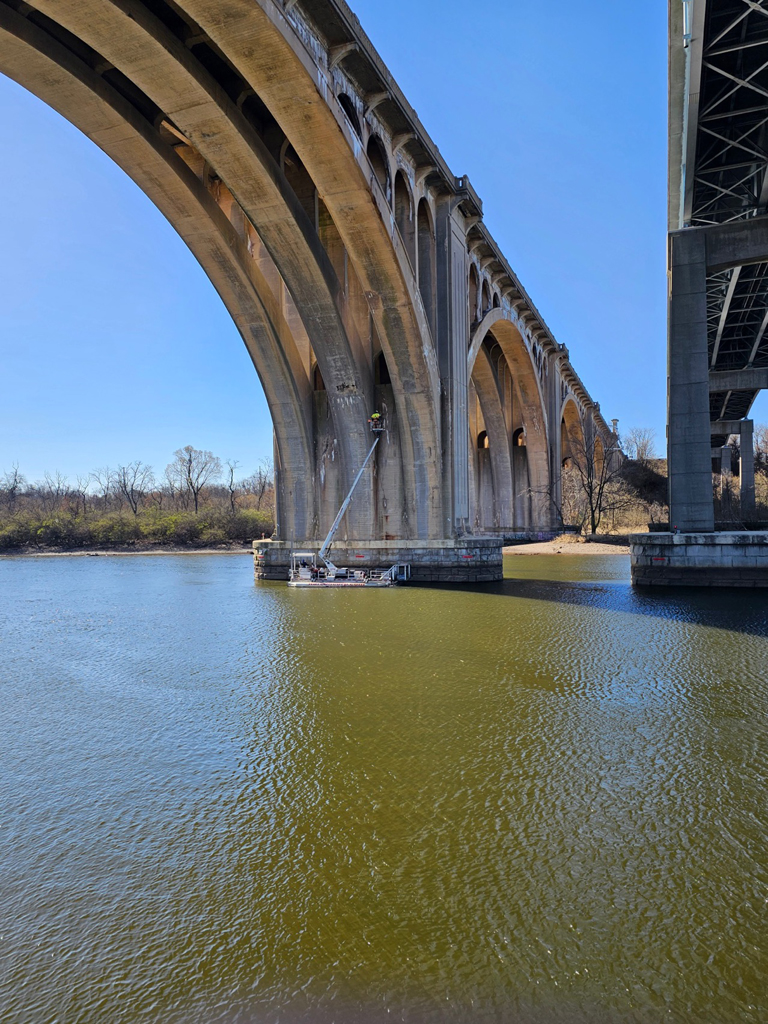

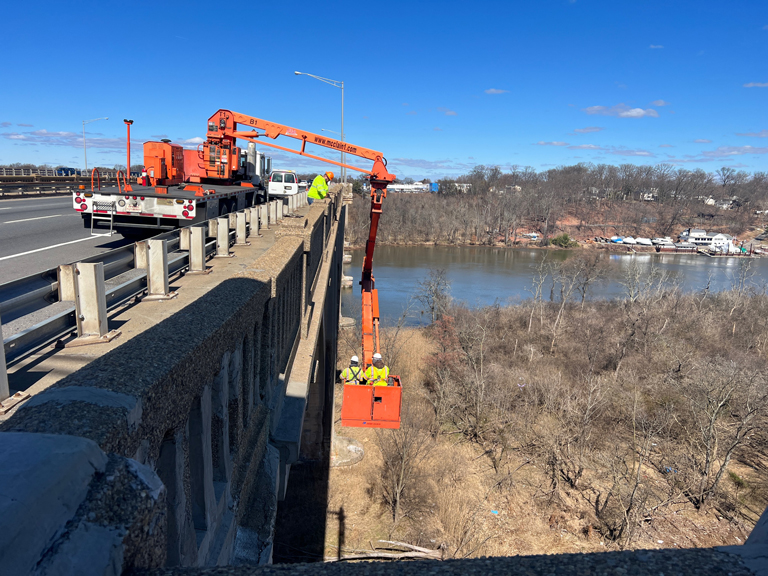

SJH assisted with the in-depth and hands-on inspection effort during the PE phase by providing Assistant Team Leaders, CADD, and office support to the HNTB team. The existing bridge, originally built in 1929, was rehabilitated in 1975. The bridge consisted of a 15-span structure with 6 concrete open spandrel main spans (Spans 6-11) and 9 approach filled barrel arch spans (Spans 1-5 and 12-15). Each of the main spans featured three reinforced concrete arch ribs supporting the deck via diaphragm walls framed into five concrete stringer beams. The deck had an asphalt overlay on top of the concrete surface.
